Set Parameter Node

About:  This article introduces the Set Parameter node, a Special node within Construct.
Location: Node panel

Table of Contents

• Feature Overview
  • Example
• Video Tutorial
• Related Articles

Feature Overview

The Set Parameter node (or Set Param node) allows the value of a parameter to be dynamically determined by the value contained in the dataset feeding into it. It is a way to have parameter values be determined or updated without the user needing to enter a parameter value.

A job needs to contain one or more parameters to use the Set Parameter node. This node accepts a data stream and looks to use the values from the data in the columns to set as the value of the job parameter(s).

Because a parameter can only contain a single value at a time, the data columns feeding the Set Parameter node also need to be reduced to a single value within a single row.

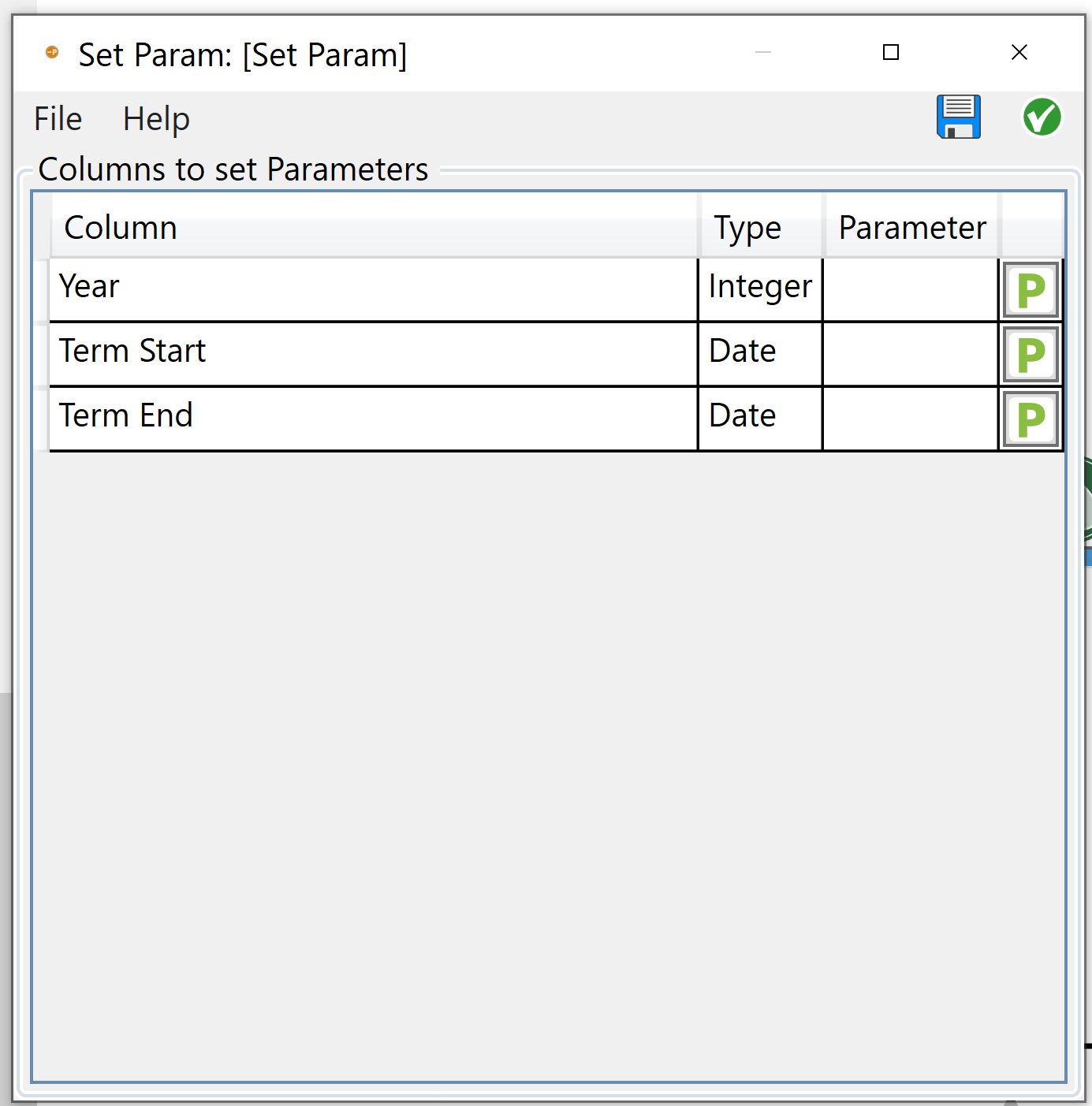

When configuring the Set Parameter node, all available data columns are listed as well as their data types. The user can then use the green P button to select which of the available job parameters the column value should fill.

Note: The data type of the column needs to match the data type assigned to the parameter.

Example

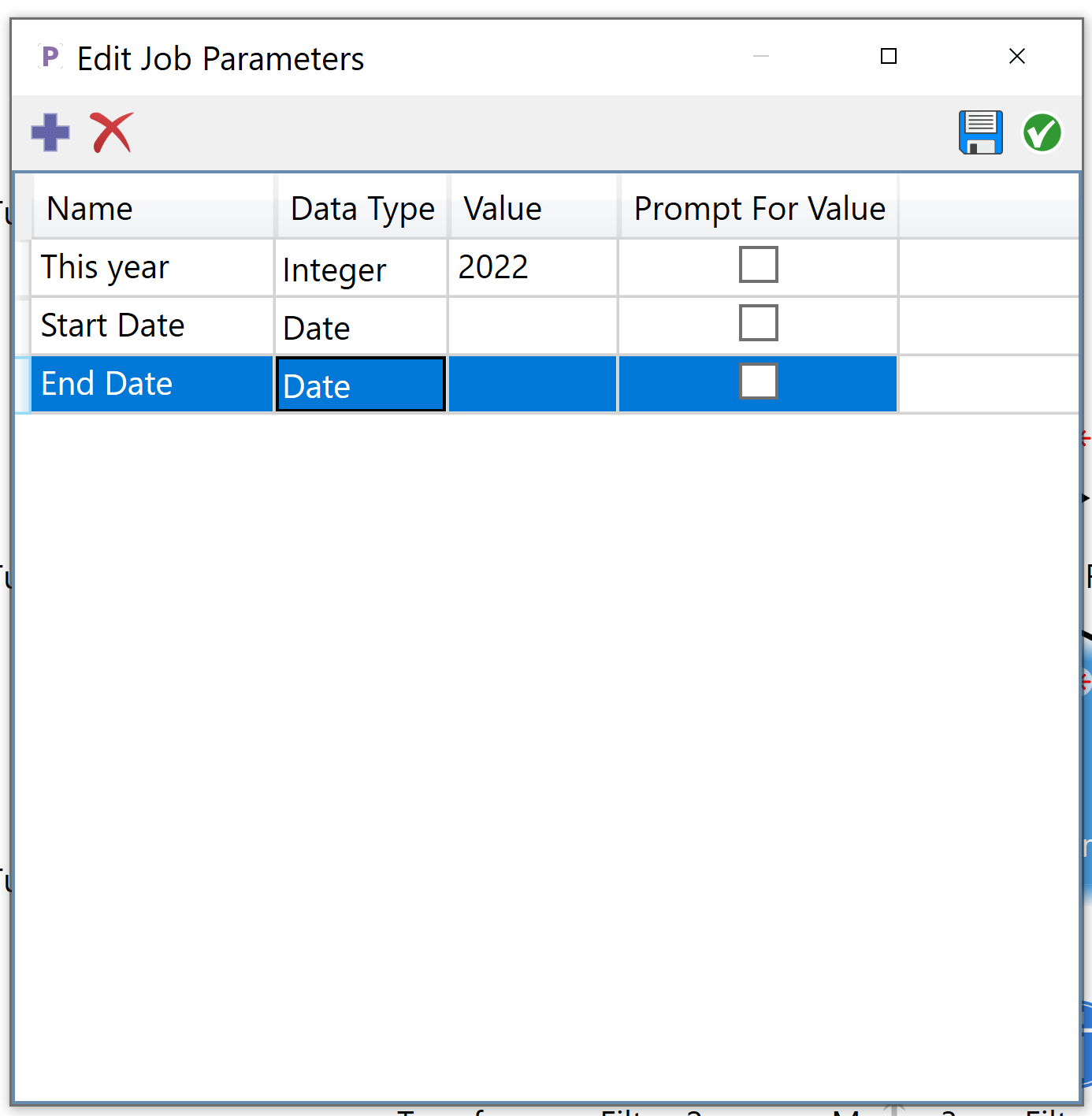

Consider a job containing parameters for a Start and End date.

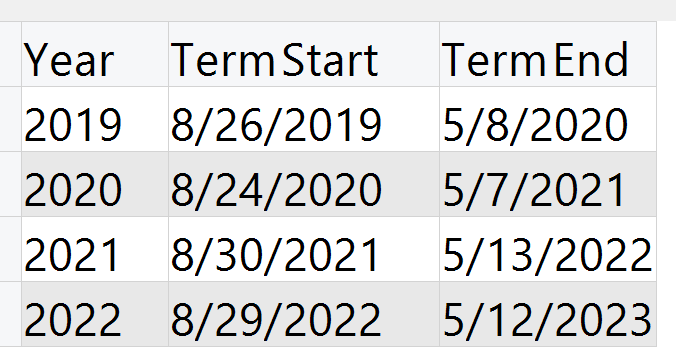

To dynamically fill the value of those parameters depending on the current year, a dataset containing this information for several years can be used along with the Set Parameter node.

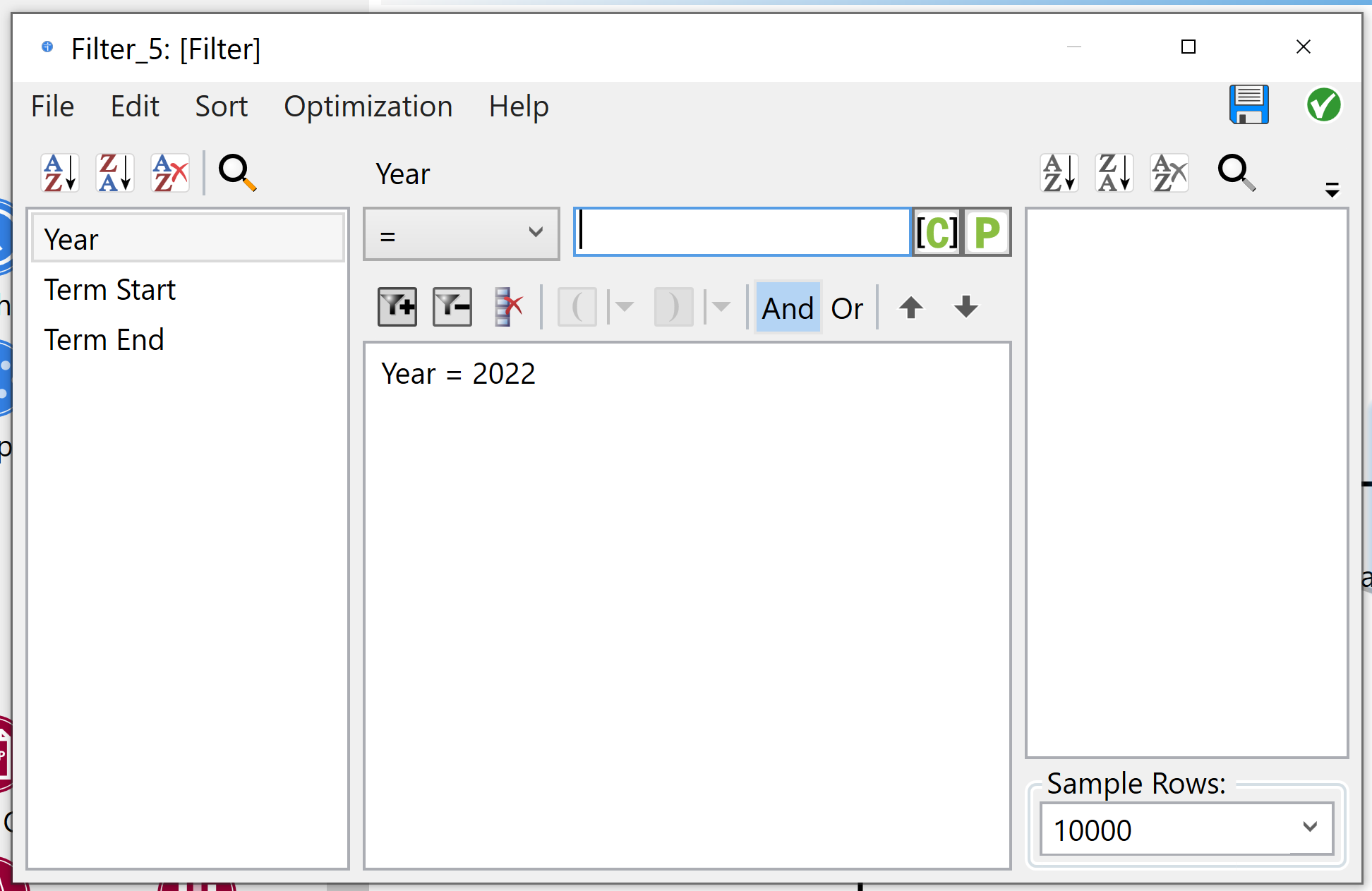

Because the Start Date and End Date parameters cannot take on all the values in the dataset, it needs to be reduced to a single row. In this case only the most recent TermStart and TermEnd dates are desired. So this dataset can be filtered to take only the row with the Year equal to 2022.

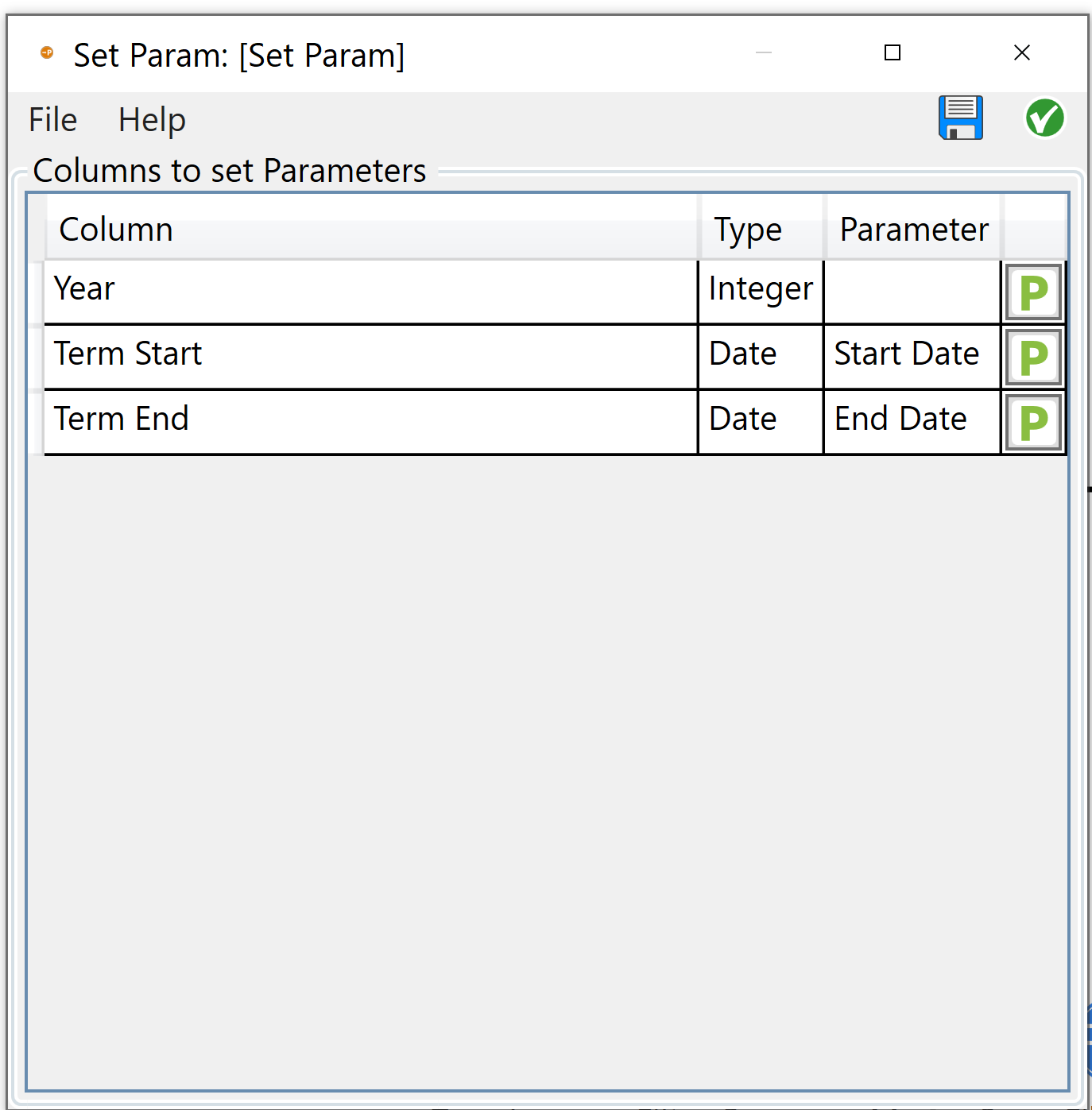

Now the single record with one value for each column can be used to assign those values to the job parameters.

When the job is run, the parameter values will be assigned and used through out the job.

Video Tutorial
