About: This article describes how to upload a dataset from Construct to Bridge.
Table of Contents
Introduction
Datasets are uploaded to Bridge from Construct using the Bridge node. Datasets can only be uploaded to a Construct user's own Bridge account. However, once a dataset is in Bridge, permissions and settings can be configured to share datasets with other Bridge account holders within the same organization. To upload a dataset to Bridge from Construct, two things need to be configured in Construct: a user's reporting credentials and a Bridge node.
Configure Your Reporting Credentials

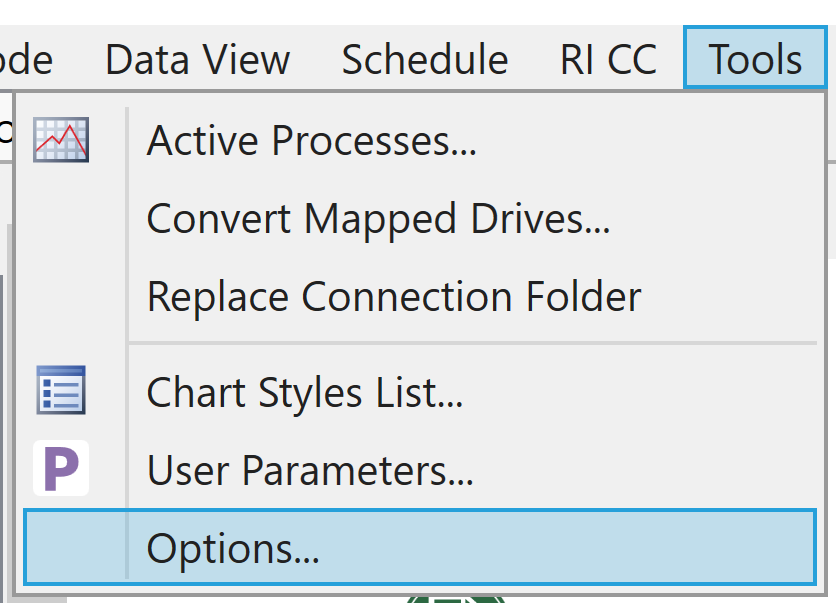

In order to link the Bridge account, users must enter their Bridge credentials into Construct. This can be done by going to Tools > Options > Reporting. The Email Address is the same one used to log in to your Bridge account and the Password is the API Key which can be found in Bridge under Ellipsis (top right corner) > Settings > API Key. This only needs to be done the first time a user uploads a dataset to Bridge, or if their Bridge credentials change.
Configuring a Bridge Node

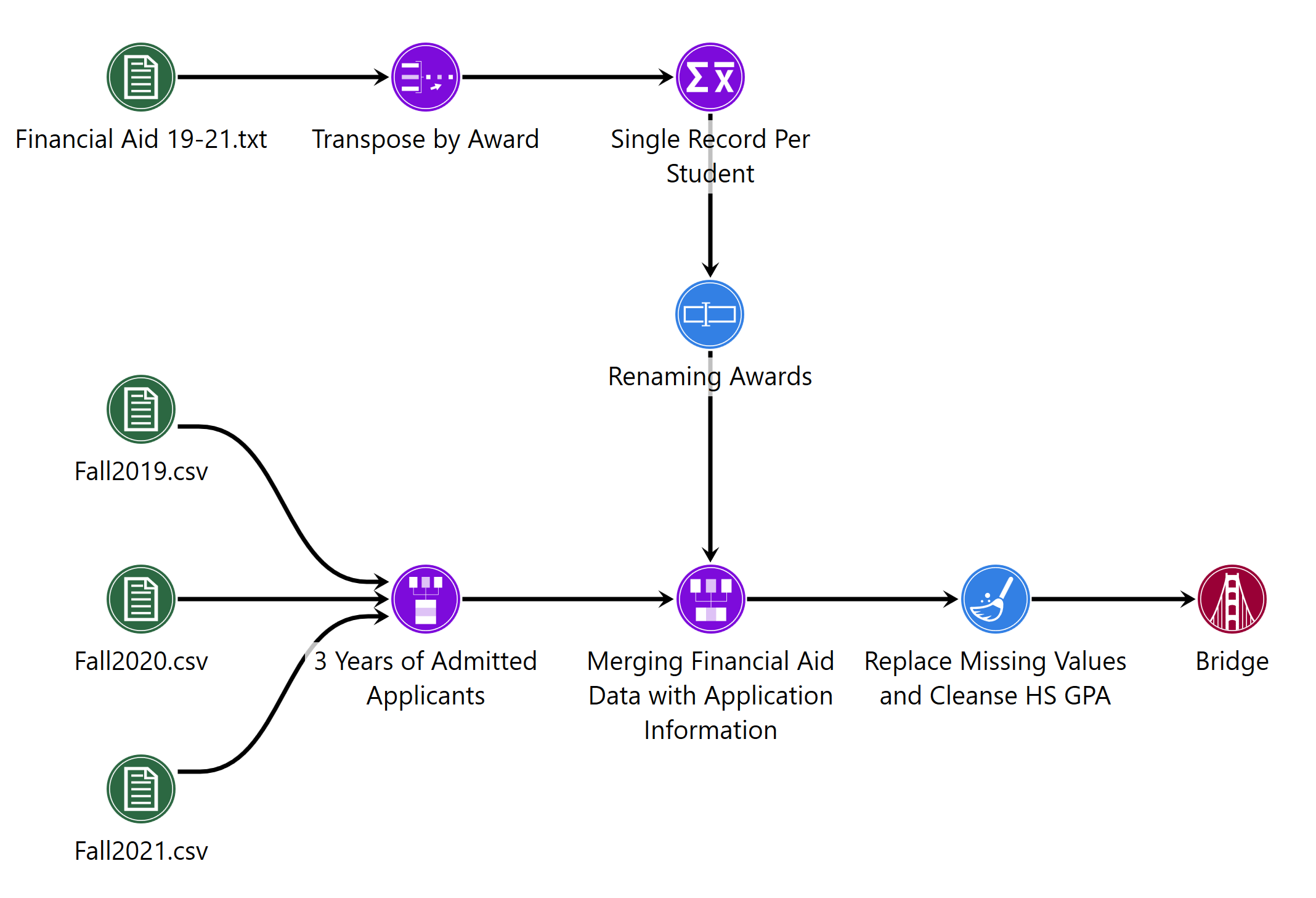

The Bridge node is what links a dataset output in Construct to a Bridge account. Attach a Bridge node like you would any other output node to the workflow. Double-click on the Bridge node to configure it. In the configuration window users can:
- Remove columns from the output by un-checking the corresponding box to the left of the column name
- Name the dataset (this is what will appear in the Bridge account)
- Decide if you want to overwrite your dataset every time you run your output (only applies if the Dataset Name is the same as an existing dataset in Bridge)
Note: If you do not see the Bridge node in the Output section of the node panel, you may need to adjust a setting by going to Tools > Options > Display and selecting the check box next to Bridge. If you still do not see the Bridge node, please contact RI-Support@eab.com.
